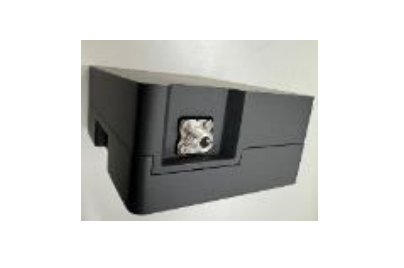

NIRvascan Smart Near Infrared Spectrometer Extended Plus Fiber Optics Model F13 (1600nm to 2400nm)

The NIRvascan is the world's first affordable and portable smart near infrared spectrometer. It covers many field applications and it's configuration is optimized for  fiber input detection.

Diffuse reflectance is the reflection of light from a surface that an incident ray is reflected at many angles rather than just one angle as in the case of specular reflection. Each chemical substance or material substance has their own reflectance spectrum. It is a non-evasive and non-destructive technique.

For more extensive information and specification, be sure to visite the NIRvascan website.

Avantages of the NIRvascan:

• Reliable, portable, sensitive with signal to noise ratio of 3000:1

• Optical resolution peak to peak 12 nm

• Slit size 25 microns

• High performance Richardson grating

• Very-low-noise 24-bit analog-to-digital converter. Converts the analog output of the InGaAs detector into a 24-bit digital value

• Infrared thermopile sensor that measures ambient and detector temperature

• APP driven on Android and OS (Iphone, Ipod, Ipad)

• Bluetooth low energy (BLE) communication protocol with APP or USB

• Small and compact 59.5x47.5x24.5mm, 60g

• FCC and CE approved

Applications:

• Pharmaceutic drugs identification

• Pill hardness

• Narcotic identification

• Plastic identification for recycling

• Mineral Identification for field exploration

• Food quality inspection

• Agricultural plant health monitoring

• Moisture in material

• Textile fabrics identification

• Coating reflectance

• Paint pigment testing

• Soil monitoring

• Conservation of artistic and history works

• Bacteria detection

• Fungus detection
