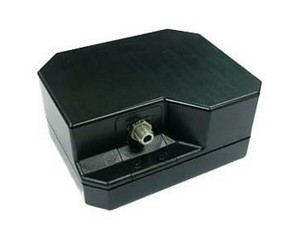

NIRvascan Smart Near Infrared Spectrometer Fiber Input Model F1 (900nm to 1700nm)

https://www.alliedscientificpro.com/web/image/product.template/20545/image_1920?unique=175d90e

US $ 3 195,00 3195.0 USD US $ 2 224,16

3 195,00 CA $

Pas disponible à la vente

Cette combinaison n'existe pas.

Contactez-nous

Conditions générales
Lead time 6-8  weeks, built to order

The NIRvascan is the world's first affordable and portable smart near infrared spectrometer. It covers many field applications and it's configuration is optimized for diffuse reflectance, transmission and fiber input detection.

Diffuse reflectance is the reflection of light from a surface that an incident ray is reflected at many angles rather than just one angle as in the case of specular reflection. Each chemical substance or material substance has their own reflectance spectrum. It is a non-evasive and non-destructive technique.

Avantages of the NIRvascan:

  • Reliable, portable, sensitive
  • Optical resolution peak to peak 10 nm
  • Slit size 25 microns
  • High performance Richardson grating
  • Illumination module integrated and stable
  • Very-low-noise 24-bit analog-to-digital converter. Converts the analog output of the InGaAs detector into a 24-bit digital value
  • Infrared thermopile sensor that measures ambient and detector temperature
  • APP driven on Android and OS (Iphone, Ipod, Ipad)
  • Small and compact 75x58x26.5mm, 65g
  •  FCC and CE approved

Applications:

  • Pharmaceutic drugs identification
  • Pill hardness
  • Narcotic identification
  • Plastic identification for recycling
  • Mineral Identification for field exploration
  • Food quality inspection
  • Agricultural plant health monitoring
  • Moisture in material
  • Textile fabrics identification
  • Coating reflectance
  • Paint pigment testing
  • Soil monitoring
  • Conservation of artistic and history works
  • Bacteria detection
  • Fungus detection

Wavelength Range: 900-1,700 mm

Model Specification:    SMA 905 connector for fiber input

Optical Resolution: 10 nm Pixel resolution 1.17nm/pixel (accuracy + or - 0,7nm)

Signal-to noise ratio: 6000:1 in 1 second scan

Slit Size: 1.69 x 0.025 mm

Detector:  1 mm InGaAs (Hamamatsu model G12180-010A)  Dark Current 0.8nA @VR=1V Noise Equivalent Power 1.4*10-14 @λp

Communication Interface:  USB and Bluetooth Low Energy (BLE)

Sensors:  Thermopile for detector ambient humidity and temperature

Power:  USB or Build-in Li-ion battery

Dimensions:  82.2 x 66 x 45 mm

Weight:  136 g (with battery)

Measurement mode  :   Optical fiber spectroscopy

Illumination Module:   External lamp
