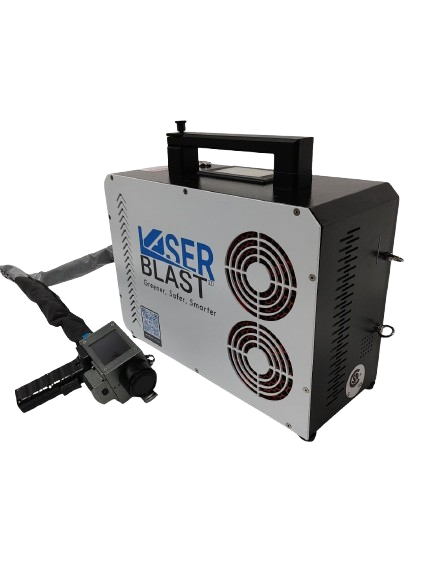

LaserBlast ™ Cleaning System 100 Watts
- 100 Watts
- Long Lifetime
- Ultra-robust
- Presets easy to use for different surface
- Controllable laser beam shape
Allied Scientific Pro (ASP) has developed and manufactured a laser cleaning system for the conservation market. Offering full control over a wide range of parameters allows for precise cleaning with the ability to retain patinas.
With a long legacy of expertise in laser nano and micro machining process, ASP is capable of offering a state of the art laser system to address the needs of the conservators. Our laser system is compact, robust and has a long lifetime with low or no maintenance for years. We are using the latest laser and scanner technology to offer high quality performance and speed efficient cleaning without causing damage to the object.
ASP laser laboratory services can assist conservators by establishing optimal parameters from samples provided if required.
- 100 Watt output laser from the laser head
- 5 meters or more optical fiber delivery for remote access
- Short pulse with no thermal effect
- Long lifetime with the latest laser technology made in the USA
- Low cost of operation
- Air Cooled, no need for water cooled which helps preserve the building
- One worker operation
Applications:
- Building restoration: Stone, Metals, Wood
- Art and sculpture
- Antique cars, boats and machinery
- Graffiti removal
- Industrial cleaning
- Critical concrete infrastructure, dam, highway overpass
- Clean environment applications
- Lead-based paint removal
- Art conservation
- Painting conservation
- Paper conservation
- Artifact conservation
- Wood conservation
- Textile conservation; leather
- Archaeological material
- Welding preparation of surfaces
- Insert moulding cleaning
- Rust and oxidation cleaning
- Surface smoothing
- Varnish and paint removal
- Nuclear reactor contamination cleaning
- Anilox roller for printing machine
Key advantages:
- Reduce total effective cost per sq/ft by 40% to 60% depending on the material
- Reduce labor cost: only 1 operator
- Avoid to damage the material base substrate
- No need for water, avoid water infiltration
- No need for chemical
- Reduce 90% of toxic waste disposal cost : solvent, media blasting, liquid waste
- Reduce risk of injury at work
- Environmental friendly
- Reduction in injury rate
- Reduce cost of protective clothing
- Increase lifetime of the substrate your are trying to conserve
- Zero consumables
- Zero preparation cost
- Easy on scheduling
Notes:
Effective cost includes; labor, preparation time, damage prevention, power consumed, amortized equipment cost, consumable material costs and residue disposition costs.
Read our blog post on Laser cleaning on stone and masonry
Key advantages of Laser cleaning of LaserArt-100
Laser cleaning best in class!
Cleaning Technique | Laser cleaning | Dry Ice | Sand | Glass Beads | Walnut Shells | Water | Steam | |
Waste for Disposal | NO | NO | YES | YES | YES | YES | NO | |
Abrasive | NO | NO | YES | YES | YES | NO | NO | |
Toxic waste | NO | NO | YES | YES | YES | YES | NO | |
Electrically Conductive | NO | NO | NO | NO | NO | YES | YES | |
Consumable needed | NO | YES | YES | YES | YES | YES | YES | |
Other gear required | NO | YES | YES | YES | YES | NO | YES | |
Preparation intensive | NO | NO | YES | YES | YES | YES | YES | |
Environment friendly | YES | NO(CO2) | NO | NO | NO | NO | NO | |
Noisy | Very Low | Very High | Very High | Very High | High | High | Medium | |
Vibration | NO | YES | YES | YES | YES | YES | Medium | |
Dry process | YES | YES | YES | YES | YES | NO | NO | |
Hazardous | Low | High | Very High | Very High | Very High | High | High | |
Cause airborne particles | NO | YES | YES | YES | YES | YES | YES | |
At-line-online cleaning | YES | NO | NO | NO | NO | YES | NO | |
Work on hot or cold surface | YES | Sometime | YES | YES | YES | NO | YES | |
Extra Nozzle or tools to shape flow | NO | YES | YES | YES | YES | YES | YES | |
Performance Comparison | Excellent | Great | OK | OK | Limited | OK | Poor |
Parameter | Value | Unit |
Laser Power Range | 10-100 | Watts |
Laser Pulse Duration | 20-350 | Nanosecond |
Laser Scan Size | 20-140 | Millimeter |
Laser Scan Speed | 1000-14000 | mm/s |
Electrical Power | 0.5 | Kilowatt |
Electrical Voltage | 110 | Volst AC |
Fiber Cable Length | 10 or 13 | Meters |
Machine weight | 16 | Kilograms |
