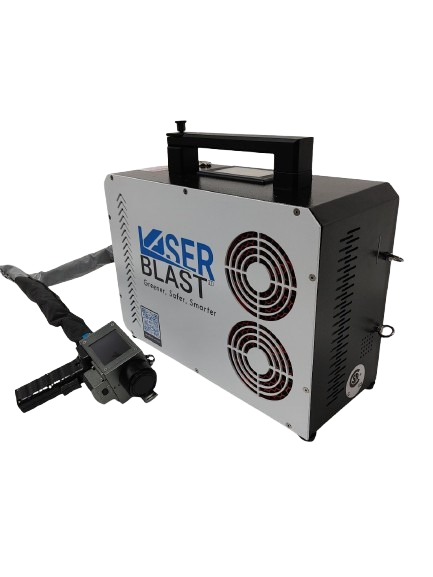

LaserBlast ™ Cleaning System 200 Watts
- 200Watts
- Long Lifetime
- Ultra-robust
- Presets easy to use for different surface
- Controllable laser beam shape
Allied Scientific Pro (ASP) has developed and manufactured a laser cleaning system to replace traditional blast media methods, sand, glass beads or dryice . Offering full control over a wide range of parameters allows for precise cleaning with the ability to retain patinas or industrial parts intact.
With a long legacy of expertise in laser nano and micro machining process, ASP is capable of offering a state of the art laser system to address the needs of the industrial applications. Our laser system is compact, robust and has a long lifetime with low or no maintenance for years. We are using the latest laser and scanner technology to offer high quality performance and speed efficient cleaning without causing damage to the object.
ASP laser laboratory services can assist and by establishing optimal parameters for your application.
- 5 meters or more optical fiber delivery for remote access
- Short pulse with no thermal effect
- Long lifetime with the latest laser technology made in the USA
- Low cost of operation
- Water cooled which helps preserve the building
- One worker operation
Application
- Black steel A106 Grade B for pipeline ( see video section)
- Welding preparation of surfaces
- Rust and oxidation cleaning
- Surface smoothing varnish
- Surface texturing for paint adhesion
- Turbo engineer combustion chamber cleaning for power plant
- Radioactive surface cleaning for nuclear plant
- Part grease cleaning
- Coating removal
- Corrosion treatment
Key advantages:
- Reduce total effective cost per sq/ft by 40% to 60% depending on the material
- Reduce labor cost: only 1 operator
- Avoid to damage the material base substrate
- No need for water, avoid water infiltration
- No need for chemical
- Reduce 90% of toxic waste disposal cost : solvent, media blasting, liquid waste
- Reduce risk of injury at work
- Environmental friendly
- Reduction in injury rate
- Reduce cost of protective clothing
- Increase lifetime of the substrate your are trying to conserve
- Zero consumables
- Zero preparation cost
- Easy on scheduling
Note: Effective cost includes; labor, preparation time, damage prevention, power consumed, amortized equipment cost, consumable material costs and residue disposition costs.
Key advantages of Laser cleaning of LaserBlast-200
Laser cleaning best in class!
Cleaning Technique | Laser cleaning | Dry Ice | Sand | Glass Beads | Walnut Shells | Water | Steam | |
Waste for Disposal | NO | NO | YES | YES | YES | YES | NO | |
Abrasive | NO | NO | YES | YES | YES | NO | NO | |
Toxic waste | NO | NO | YES | YES | YES | YES | NO | |
Electrically Conductive | NO | NO | NO | NO | NO | YES | YES | |
Consumable needed | NO | YES | YES | YES | YES | YES | YES | |
Other gear required | NO | YES | YES | YES | YES | NO | YES | |
Preparation intensive | NO | NO | YES | YES | YES | YES | YES | |
Environment friendly | YES | No(CO2) | NO | NO | NO | NO | NO | |
Noisy | Very Low | Very High | Very High | Very High | High | High | Medium | |
Vibration | NO | YES | YES | YES | YES | YES | Medium | |
Dry process | YES | YES | YES | YES | YES | NO | NO | |
Hazardous | Low | High | Very High | Very High | Very High | High | High | |
Cause airborne particles | NO | YES | YES | YES | YES | YES | YES | |
At-line-online cleaning | YES | NO | NO | NO | NO | YES | NO | |
Work on hot or cold surface | YES | Sometime | YES | YES | YES | NO | YES | |
Extra Nozzle or tools to shape flow | NO | YES | YES | YES | YES | YES | YES | |
Performance Comparison | Excellent | Great | OK | OK | Limited | OK | Poor |
Parameter | Value | Unit |
Laser Power Range | 20-200 | Watts |
Laser Pulse Duration | 20-350 | Nanosecond |
Laser Scan Size | 20-140 | Millimeter |
Laser Scan Speed | 1000-14000 | mm/s |
Electrical Power | 1.1 | Kilowatt |
Electrical Voltage | 110 | Volts AC |
Fiber Cable Length | 10 or 13 | Meters |
Machine Weight | 20 | Kilograms |
