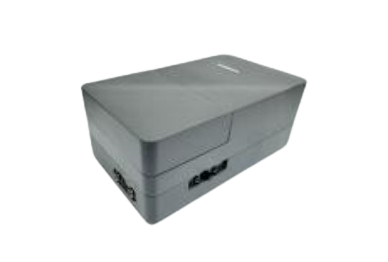

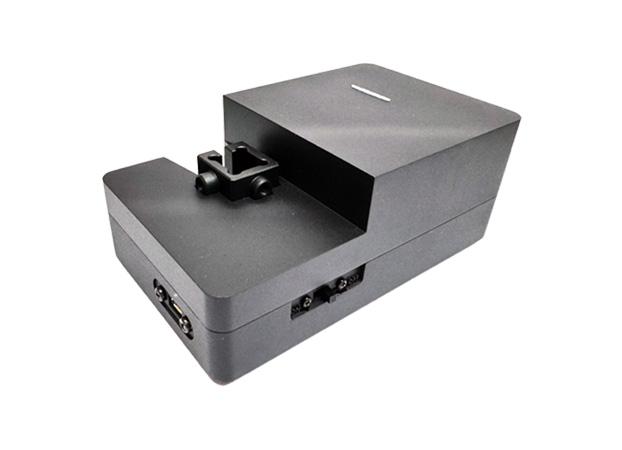

NIRvascan Smart Near Infrared Spectrometer Extended Plus Transmissive Model T13 (1600nm to 2400nm)

The NIRvascan is the world's first affordable and portable smart near infrared spectrometer with an integrated tungsten halogen light source built in. It covers many field applications and it's configuration is optimized for diffuse reflectance, transmission and fiber input detection.

Diffuse reflectance is the reflection of light from a surface that an incident ray is reflected at many angles rather than just one angle as in the case of specular reflection. Each chemical substance or material substance has their own reflectance spectrum. It is a non-evasive and non-destructive technique.

Avantages of the NIRvascan:

• Reliable, portable, sensitive with signal to noise ratio of 3000:1
• Optical resolution peak to peak 12 nm
• Slit size 25 microns
• High performance Richardson grating
• Illumination module integrated and stable
• Very-low-noise 24-bit analog-to-digital converter. Converts the analog output of the InGaAs detector into a 24-bit digital value
• Infrared thermopile sensor that measures ambient and detector temperature
• APP driven on Android and OS (Iphone, Ipod, Ipad)
• Bluetooth low energy (BLE) communication protocol with APP or USB
• Small and compact 95.5x47.5x37.5mm, 110g
• FCC and CE approved

Applications:

• Pharmaceutic drugs identification
• Pill hardness
• Narcotic identification
• Plastic identification for recycling
• Mineral Identification for field exploration
• Food quality inspection
• Agricultural plant health monitoring
• Moisture in material
• Textile fabrics identification
• Coating reflectance
• Paint pigment testing
• Soil monitoring
• Conservation of artistic and history works
• Bacteria detection
• Fungus detection

Wavelength Range: 1600-2,400 mm

Model Specification:  Standard 1 cm cuvette (cuvette not included)

Optical Resolution: Typ. 12nm @ 1530nm LD

Signal-to noise ratio: 3000:1 in 1 second scan

Slit Size:  1.8mm * 0.025 mm

Detector: 1mm extended InGaAs (uncooled)

Communication Interface: 1. USB and UART 2. BLE (optional)

Sensors: Ambient humidity and temperature sensors

Power: USB

Dimensions:  105 X 48 X 38.2

Weight:  < 150 g
Wavelength Accuracy: Typ, ±1 nm

Illumination Module: Tungsten filament lamp (0.7W*1)
Scan Capability: Linear / Hadamard / Slew Scan
Cuvette Holder: N/A
